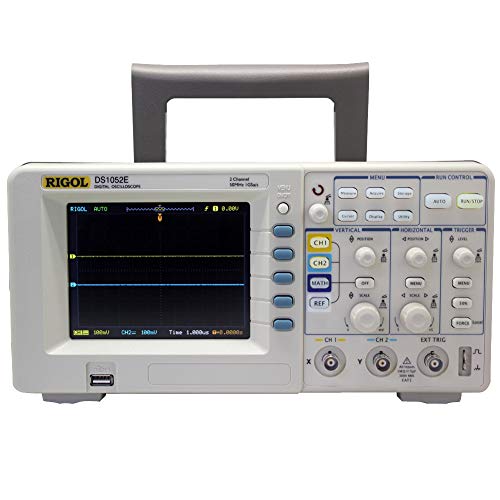

RIGOL DS1052E デジタルオシロスコープ (50MHz, 2CH, 1GS/s)
生産者: RIGOL Model: DS1052E 起源: China - 連絡先
- 在庫あり: 4 Unit
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24）62923267
Bandwidth : 50Mhz
Channels : 2
Sample Rate : 1GSa/s
Input Coupling : DC, AC, GND
Input Impedance : 1MΩ± 2%
Maximum Input Voltage : 400V (DC＋AC Peak, 1MΩ input impedance)
Scanning Speed Range : 5ns/div~50s/div
Volts/div Range : 2mV/div~10V/div
Supply Voltage : 100 ~ 240VAC
Details
Xem Video về Máy hiện sóng số Rigol DS1052E, 50MHZ
|
|
|
||
|
|
|||
| DS1000E Series Digital Oscilloscope
DS1000E series are the high-performance, economic digital oscilloscopes. They are widely used in the areas of education, training, production line, research and development.
|
|
||
Features and Benefits
|
|||
Advanced functions |
|||
|
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|||
|
|
|
||
- For detailed performance parameters and technical specifications, refer to DS1000E Series Datasheet
|
2010-09-09 |
Datasheet |
|
|
2010-09-08 |
User s Guide |
|
|
2010-09-09 |
Programming Guide |
|
|
2009-04-15 |
Users Guide |
|
|
2009-02-10 |
Users Guide |
|
|
2009-12-04 |
Users Guide |
|
|
2010-08-12 |
Users Guide |
|
|
2009-10-26 |
Users Guide |
|
|
2010-07-23 |
Users Guide |
|
|
2010-08-19 |
Users Guide |
|
|
2009-04-29 |
Installation Guide |
|
|
2009-12-08 |
ServiceGuide |
